• 3500lb Trailer Idler Axle 85" Hub Face 70" Spring Center Dexter/Lippert Compatible - Drag Star Trailers
1 1
3,500 LBAxle capacity
YOUR SIZECustom hub face
4 PATTERNSWheel bolt options

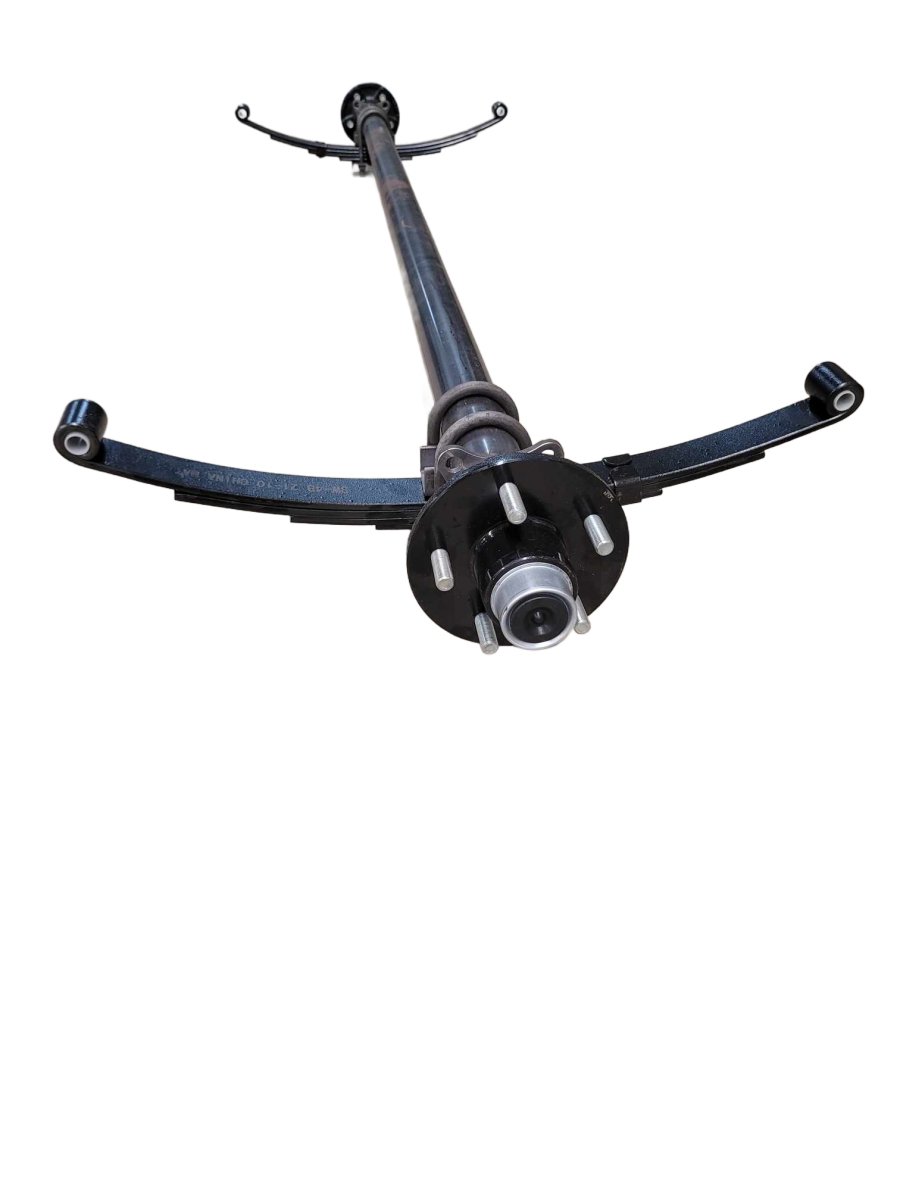

Product photo shows an example configuration. Your axle is built to the specifications on your order.

BEFORE YOU ORDER

Start with the right measurements.

See the measuring guide

Custom 3,500 lb Trailer Axle

Custom 3,500 lb Trailer Axle

BUILT TO YOUR MEASUREMENTS

A 3,500 lb trailer axle built around your trailer. Choose your measurements, wheel bolt pattern and available options below.

Custom hub faceChoose your configuration
$399.00 USD
$399.00 USD
Sale Sold out
Shipping calculated at checkout.
Custom sizing available. Confirm current build time.

Build time and shipping transit time are separate.

MAKE IT YOURS

Configure your axle

Have your hub-face and spring-center measurements ready.

Bolt Pattern

Confirm your measurements and selected options before checkout.

View full details

THE DETAILS THAT MATTER

Built for your
next repair.

Order the hub face you need, including fractional measurements. Match your wheel bolt pattern and spring-center dimensions before placing your order.

A 60-inch, 72-inch or 80-inch hub face is an example of a custom size. Your order can specify a different measurement.

Axle specifications

Capacity
3,500 lb per axle
Axle type
Choose from available options
Hub face
Built to your measurement
Spring center
Built to your measurement
Bolt patterns
5 on 4.5 · 5 on 4.75
5 on 5 · 5 on 5.5
Inner / outer bearing
L68149 / L44649
Stud size
½ inch
Tube outside diameter
2⅜ inches
Springs
Choose from available spring options

MEASURE TWICE. ORDER ONCE.

Two measurements.
A better fit.

Hub face and spring center measurement reference The HF line runs between the two wheel-mounting faces. The shorter SC line runs between the centers of the spring seats. This schematic is not to scale. HFSC
Measurement reference · not to scale
HF

Hub face

Measure between the flat faces of the hubs where the wheels mount. Use this distance when specifying your hub-face width.

SC

Spring center

Measure from the center of one spring seat to the center of the other. This needs to match your trailer's spring mounting arrangement.

Also check your bolt pattern.

Confirm that the wheel bolt pattern matches the hub option you select. Photos and axle capacity alone do not establish fitment.

GOOD TO KNOW

Before your
axle is built.

Ask a question
How long does it take?

Confirm current build time before placing your order. Shipping transit time is additional. Contact us before ordering if you have a specific deadline.

Can I order a fractional hub-face size?

Yes. Specify the exact hub-face and spring-center measurements you need. Review the complete dimensions and selected options before checkout.

Will this replace my existing axle?

Match capacity, hub face, spring center, bolt pattern, bearings and mounting arrangement. Choose the required hub and brake configuration from the available options. Compatibility depends on the complete specifications of your trailer.
